carbide customers

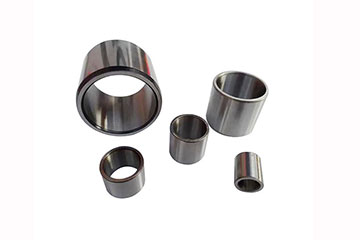

Carbide Bushings

Professional Tungsten Carbide Bushings Manufacturer

We specialize in the manufacturing of precision tungsten carbide bushings used in high-wear industrial applications. Our carbide bushings provide excellent wear resistance, high hardness, and long service life in demanding working environments. MOQ: 1 piece. We can manufacture custom carbide bushings according to customer drawings or samples.

Our Carbide Bushings Products

Custom Tungsten Carbide Bushings Machining Capabilities

As an experienced tungsten carbide machining manufacturer, we provide precision carbide bushings and sleeve components used in industrial machinery, pumps, and high-wear systems.

  • Minimum machinable straight hole diameter: 0.06mm with material thickness of 0.6mm
  • Internal hole surface finish by EDM: up to Ra 0.2
  • External surface polishing roughness range: from Ra 0.02 to Ra 1.6
  • Sharp corner machining capability: minimum inner corner radius up to R0.015mm
  • Precision inner diameter and outer diameter machining
  • Custom sleeve bushings, guide bushings, and wear-resistant sleeves
  • Strict dimensional tolerance and surface finish control

Machinable materials include tungsten carbide, mold steel, tool steel, copper, as well as other metals and ceramic materials.

How to Choose the Tungsten Carbide Grade for Bushings

Custom carbide bushings are typically manufactured using tungsten carbide grades with properties similar to ISO K-series, with a focus on wear resistance, hardness, and dimensional stability under load. Compared to nozzle applications, bushings often operate under combined conditions such as sliding wear, friction, pressure load, and potential impact.

Depending on application requirements, such as shaft speed, load conditions, lubrication, working media, and service life expectations, different cobalt binder contents (e.g., K10–K40 equivalent) are selected to balance wear resistance and toughness. Lower cobalt grades provide higher hardness and wear resistance for low-impact conditions, while higher cobalt grades offer improved toughness and resistance to cracking or chipping under heavy load or misalignment.

Corresponding Chinese tungsten carbide grades. For example, K10 corresponds approximately to YG6 (high wear resistance), K20 to YG8 (general purpose), and K30–K40 to YG10–YG15 (higher toughness grades). Final grade selection depends on wear conditions, impact load, and service life requirements.

K10, K15, K20, K30, K40 Grade Equivalency Table (YG6, YG8, YG10, YG15)

ISO Grade General Characteristics Common Chinese Grade Reference
K10 High hardness, low cobalt content, excellent wear resistance YG6 / YG6X
K15 Slightly improved toughness while maintaining good wear resistance YG6X / YG8X
K20 General-purpose grade with balanced wear resistance and toughness YG8
K30 Better toughness and impact resistance YG10 / YG10X
K40 High toughness and high cobalt content, suitable for higher impact conditions YG13 / YG15
ISO Grade Comparison for Tungsten Carbide Across Different Brands
China Carbide Grades Guide: K10, K20, K30, K01 & More

Available Tungsten Carbide Grades

We offer a wide range of tungsten carbide grades to meet various application requirements, including materials with different cobalt (Co) contents and customized compositions. Our carbide machining services support processing of tungsten carbide materials containing nickel (Ni), molybdenum (Mo), chromium (Cr), titanium (Ti), tantalum (Ta), niobium (Nb), vanadium (V), and other alloying elements in different proportions.

According to specific working conditions and performance requirements, we can provide machining services for carbide materials from different grades and brands, designed for high hardness, high wear resistance, corrosion resistance, and high impact resistance.

Applications of Carbide Bushings

Tungsten carbide bushings are widely used in industries requiring high wear resistance and long service life, including:

  • Oil and gas drilling equipment
  • Pump and valve systems
  • Mining and mineral processing machinery
  • Industrial machinery and heavy equipment
  • Hydraulic systems
  • Automotive and aerospace components
  • Precision mechanical equipment

Frequently Asked Questions

Q: Can you manufacture carbide bushings according to drawings?
A: Yes. We specialize in custom carbide bushings according to customer drawings, technical requirements, or samples.

Q: What is the minimum order quantity?
A: The minimum order quantity is 1 piece. We support prototype and small batch production.

Q: What materials can you machine?
A: We can process tungsten carbide, mold steel, tool steel, copper, as well as other metals and ceramic materials.

Q: How are the products packaged and shipped?
A: Products are carefully packed in paper boxes or wooden cases depending on size and weight. Shipments are usually delivered by international express services.

Q: What is the typical tolerance for custom carbide bushings?
A: Tolerance requirements vary depending on the application and functional priorities of the part. Typical tolerances range from +/-0.02 mm to +/-0.001 mm. Some applications focus more on overall dimensions, while others require tighter control of critical features such as hole diameter.

Q: What is the production lead time?
A: The typical production time is 10–30 days depending on product quantity and complexity.

Get a Quote for Custom Tungsten Carbide Bushings

Send your drawings or requirements. MOQ 1 piece. Fast response within 24 hours.
